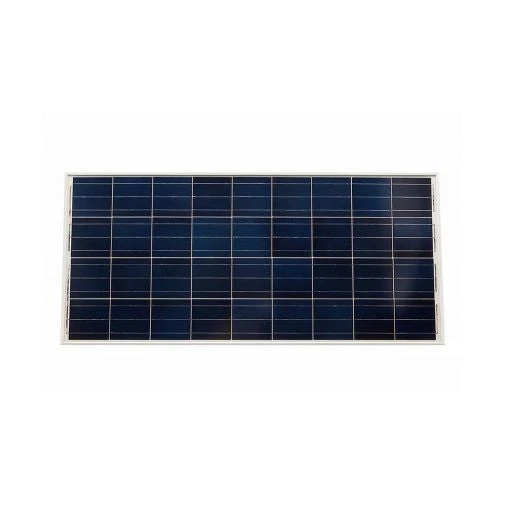

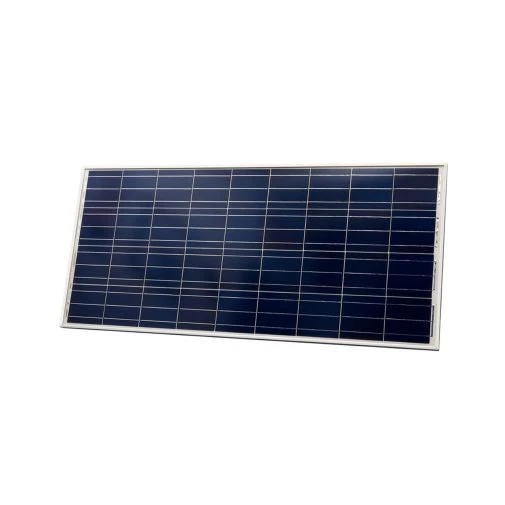

Victron 12V 175W Poly Solar Panel 1485MM X 668MM X30MM

VICTRON 12V 175W POLY SOLAR PANEL

1485MM x 668MM x30MM (LxWxH) • SERIES 4A • POLYCRYSTALLINE WITH SILVER FRAME

• Low voltage-temperature coefficient enhances high-temperature operation.
• Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
• 25-Year limited warranty on power output and performance.
• 5-Year Limited warranty on materials and workmanship.
• Sealed, waterproof, multifunctional junction box gives high level of safety.
• High performance bypass diodes minimize the power drop caused by shade.
• Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
• A sturdy, anodized aluminum frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
• Pre Wired quick-connect system with PV- ST01 connectors
• Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
• Cell type Polycrystalline
• Number of cells in series 36
• Nominal power (Watts) 175W
• Open Circuit Voltage (Volts) 21.9V
• Maximum Power Voltage (Volts) 18.3V
• Short Circuit Current (Amps)10.24A
• Maximum Power Current (Amps) 9.56A
• Power (Max.) 175W
• Temp Range -40 to +85°C
• Length of cable / connector 900mm / MC4
• Power Tolerance ±3%
• Maximum system voltage1000V
• Size (LxWxH) 1485mm x 668mm x 30mm
• Weight 12kg
• Warranty Electrical performance
