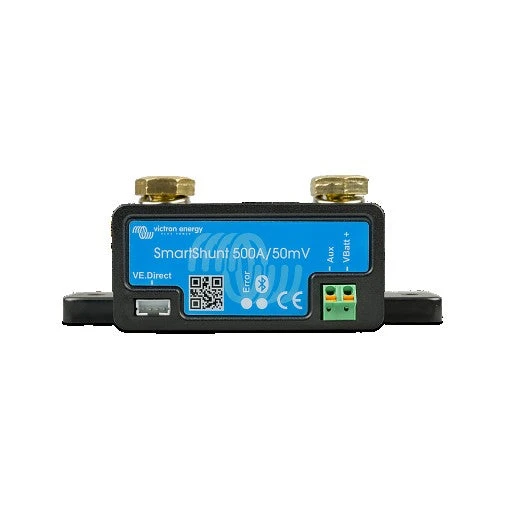

Victron SmartShunt 500A – 50mV – Battery Monitor Via Bluetooth

This is the cheapest way to get quality information on your batteries and state of charge – you just need the Victron Smart Connect app on your phone.

• Ideal if you don’t need a physical display

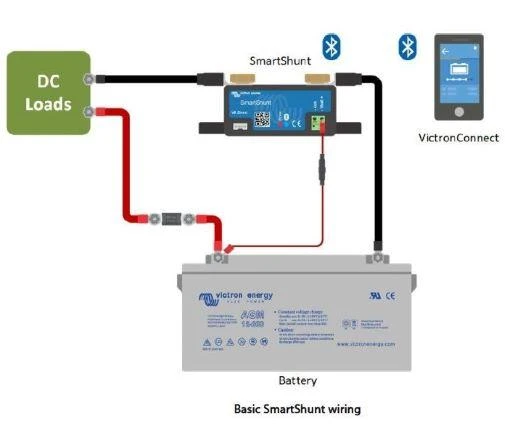

The SmartShunt is an all in one battery monitor without the display. Built in Bluetooth for ease of programming and monitoring

Download the Victron Bluetooth app:

• Customize settings
• Monitor all important data on a single screen
• View the history
• update the software when new features become available

Differences compared to BMV712 Battery Monitor:

• No programmable visual and audible alarm.
• No programmable relay

Details

• Supply voltage range 6,5 – 70 VDC
• Current draw < 1mA
• Input voltage range, auxiliary battery 6,5 – 70 VDC
• Battery capacity (Ah) 1 – 9999 Ah
• Operating temperature range -40 +50°C (-40 – 120°F)
• Measures voltage of second battery, or temperature, or midpoint Yes
• Temperature measurement range -20 +50°C
• VE.Direct communication port Yes

Resolution and Accuracy

• Current ± 0,01A
• Voltage ± 0,01V
• Amp hours ± 0,1 Ah
• State of charge (0 – 100%) ± 0,1%
• Time to go ± 1 min
• Temperature (if optional temperature sensor connected) ± 1°C/°F (0 – 50°C or 30 – 120°F)
• Accuracy of current measurement ± 0,4% Offset Less than 20 / 40 / 80 mA Accuracy of voltage measurement ± 0,3%

Dimensions

(h x w x d) 500A: 46 x 120 x 54 mm

Protection category IP21

Standards

Safety EN 60335-1 Emission / Immunity EN-IEC 61000-6-1 EN-IEC 61000-6-2 EN-IEC 61000-6-3 Automotive EN 50498

Cables

Two cables with 1A fuse, for ‘+’ connection and starter battery or midpoint connection

Optional

Temperature sensor  (ASS000100000)
