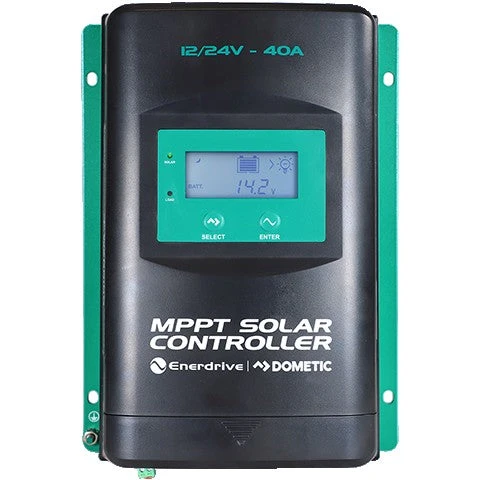

Enerdrive MPPT Solar Controller Solar Regulator – 40AMP 12/24V

40amp

12 volt or 24 volt

Enerdrive MPPT Solar Controllers utilise an advanced MPPT control algorithm, it can quickly track the maximum power point (MPP) of the PV array and obtain the maximum energy from solar array under any conditions; improving charging by 20%-30% compared with PWM charging method.

The Enerdrive MPPT Solar Controllers has self-adaptive three-stage charging mode based on a digital control circuit, which can prolong the lifespan of batteries and improve the system performance. It also has electronic protection for overcharge, over discharge, PV and battery reverse polarity.

Enerdrive MPPT Solar Controller Features:

• LCD display
• Advanced MPPT technology & ultra-fast tracking speed guarantee’s tracking efficiency up to 99.5%
• Maximum DC/DC transfer efficiency is as high as 98.6%.
• Advanced MPPT control algorithm to minimize the MPP lost rate and lost time
• Accurate recognition and tracking of multi-peaks maximum power point
• Wide MPP operating voltage range
• Supports lead-acid (wet and AGM) and lithium batteries
• Real-time energy statistics function
• Power reduction automatically over temperature value
• Multiple load work modes
• Comprehensive electronic protection
• IP33 Ingress protection
• Comms port included for future applications

Model	EN43540
Nominal Voltage Range	12/24VDC Auto Select
Battery Voltage Range	8 – 32V
Maximum Battery Current Output	40A
Maximum Load Current Output	40A
Maximum PV Open Circuit Voltage	100V ≤ 92V ≥
MPPT Voltage Range	(Battery Voltage + 2V) – 72V
Maximum PV Array Power Recommended	600W/12V 1200W/24V
Maximum PV Array Power Allowed (Overdrive)	720W/12V 1440W/24V
Efficiency (Maximum)	98.60%
Self Consumption	=30mA (12V) =16mA (24V)
Temperature Compensate Coeffcient 4	-3mV/∞C/12V (Default)
Grounding	Common Negative
RS485 Interface	5VDC/200mA (RJ45)
LCD Backlight Timeout	Default: 60s, Range,: 0-999S (OS: the backlight is ON all the time)
ENVIRONMENTAL PARAMETERS
Environmental Temperature 5	from  – 25 +50
Storage Temperature Range	from – 20 + 70
IP Rating	IP33
MECHANICAL PARAMETERS
Dimensions (mm) LxWxH	255 x 185 x 67.8
Mounting Hole Dimensions (mm)	200 x 176
Mounting Hole Size	5mm
Maximum Cable Size (Connector Input/Output)	6AWG (13.2mmsq)
Recommended Cable Size (Connector Input/Output)	6AWG (13.2mmsq)
