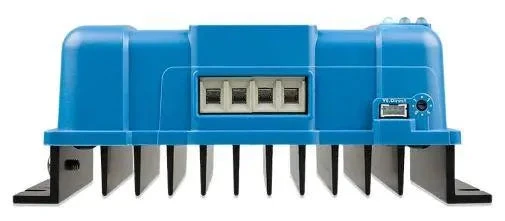

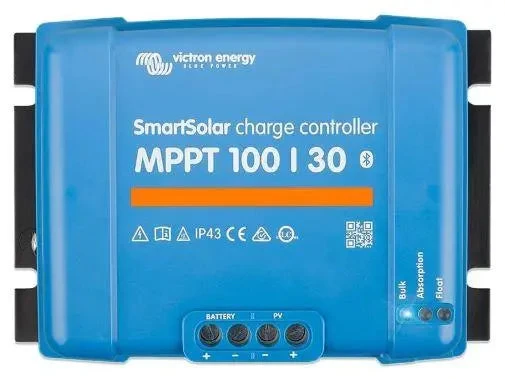

Victron SmartSolar MPPT 100V 30A Bluetooth Solar Controller

Victron smartsolar MPPT regulator 12V or 24V, up to 100V, 30A, built in Bluetooth for ease of programming and monitoring.

Solar Panel Sizing

• 12V 440W
• 24V 880W

MPPT controllers operate solar panels at their Maximum Power Point improving efficiency up to 30% by adjusting input voltage to harvest the maximum power from the solar panels.

The MPPT senses when to adjust the output that it is being sent to the battery and will shut down for a few microseconds, calculate and make relevant adjustments. The principle of MPPT is to extract the maximum possible power from a solar panel by setting the most efficient combination of voltage and current – maximum power point.

The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

Bluetooth along with the VictronConnect App provides easy access to the extensive range of functions available:

• Solar Gauge – Realtime power output
• Battery Voltage
• Battery Current
• Battery State
• Load Output [100/20 and smaller]
• Load current – shows the current being drawn by appliances
• History Analysis
• Various Settings

Colour

• Blue (RAL 5012)

Power terminals

• 16 mm² / AWG6

Protection category

• IP43 (electronic components),
• IP22 (connection area)

Weight

• 1.3 kg

Dimensions (h x w x d)

• 130 x 186 x 70 mm

Bluetooth Smart built-in:

The wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices.

Ultra-fast Maximum Power Point Tracking (MPPT)

Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions

 If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPPT.

Outstanding conversion efficiency

No cooling fan. Maximum efficiency exceeds 98%. The full output current up to 40°C (104°F).

Flexible charge algorithm

Fully programmable charge algorithm (see the software page on our website), and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).

Programming, real-time data and history display options

Modern Apple and Android smartphones, tablets, macbooks and other devices: see the VE.Direct Bluetooth Smart dongle and the MPPT app discovery sheet for screenshots.

Extensive electronic protection

Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.

Internal temperature sensor

Compensates absorption and float charge voltage for temperature.
