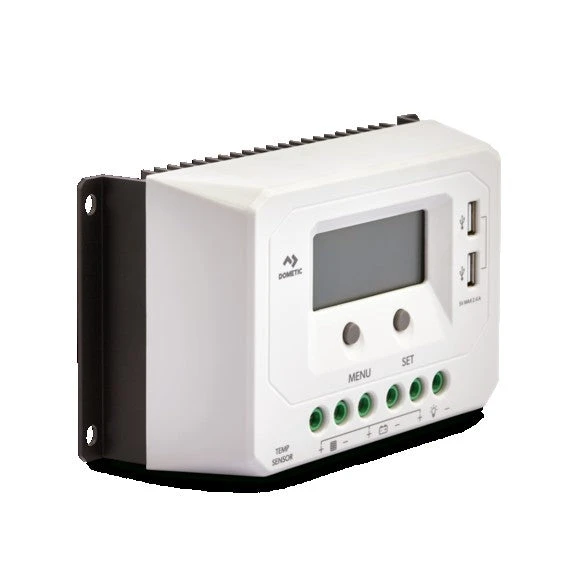

DOMETIC SC1230
30 A SOLAR CHARGE CONTROLLER

The Dometic SC1230 Solar Controller is an easy-to-use solar charge controller that is suitable for use with sealed, gel and flooded batteries.

This is our “go to” solar regulator if you are after a value but reliable unit.

TOUCH-BUTTON CONVENIENCE
HIGHLY RELIABLE
TRIED AND TESTED

3 stage intelligent PWM solar charging
Twin USB ports
Low voltage disconnect
Suitable for use with a range of battery types
Informative backlight LCD display
Operating temperature range of -25˚C – +55˚C
Multiple load control modes

THE PERFECT CHARGE, EVERY TIME

Thanks to the multiple load control modes, the Dometic SC1230 is perfect for a wide range of applications, including use in caravans, motorhomes and 4×4 vehicles. The LCD display and control panel help to ensure a perfect charge, every time.

SKU number 9600005819
Model SC1230
Model on label SC1230
Scope of delivery 30A PWM Solar controller
Product Description 30 A Solar charge controller

DIMENSIONS

Dimensions product depth 59.80 mm
Dimensions product height 100.90 mm
Dimensions product width 181 mm
Net weight 0.55 kg

ELECTRICAL

Input voltage (DC) 12/24 V
Output voltage 12/24 V
Output current 30.00 A
Battery type AGM, Lead, Gel, Sealed Lead Acid
IP class IP21
Current consumption – Standby mode 10 mA

ADDITIONAL

Colour White-Grey
