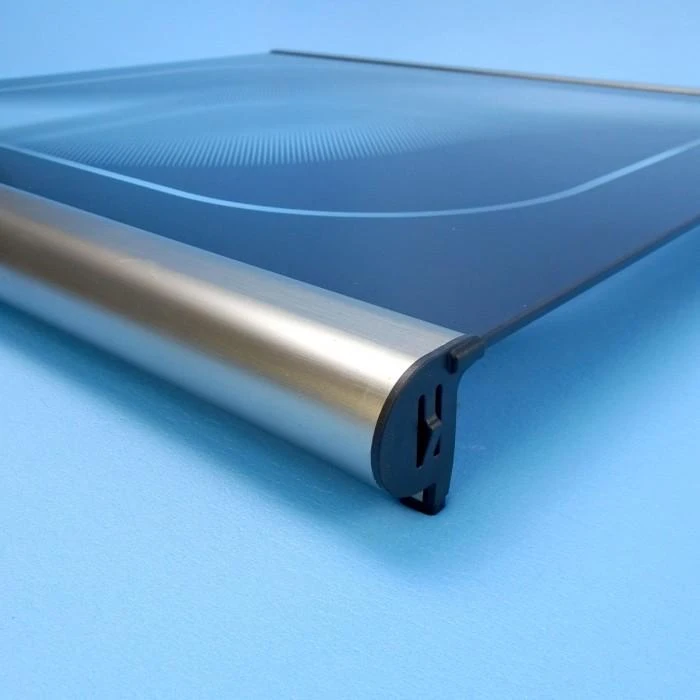

Dometic Glass Lid Suits SMEV400 Series Black – Curved End

Dometic Glass Lid Smev – pre 2010

401 and 402

Curved front

Replacement glass lid to suit the SMEV 400 series. Includes the inbuilt hinges. To replace lid, expand the rear of the stove upper trim while the old lid is in the fully open position (this releases pressure on spring). The hinge section will just pull out. Push new hinge into place with the lid in the open position then compress upper frame and bend clip.

Over all dimensions: approx 483mm x 466mm

105311633
