BBQARM Kit Black 850mm Arm Silver Large Size Tray For Ziggy Or Most BBQs

The ORIGINAL Swing Arm BBQ Table

Black 850mm Arm, Large size Alloy Silver Tray.

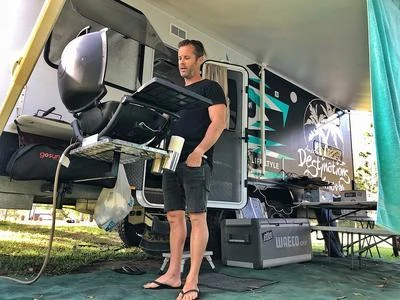

BBQARM is the must-have caravan and travel accessory for your outdoor barbecues. Australian designed and built on the Gold Coast, this space-saving innovation simply mounts to your caravan drawbar or rear bar to create a sturdy ‘out of the way‘ place for your BBQ. Swing it away when not using. With our new TOW-HITCH mount, use your BBQARM anywhere you travel with or without your caravan.

Kit has 3 parts:
1) ARM black powder-coated galvanised steel is available in 3 lengths, this one is:

• 850mm

2) TRAY chequer-plate aluminium with upturned edges, regular size:

• Large 700mm x 500mm (suits Ziggy and most other portable barbecues)
• Silver Alloy Finish

3) Universal Drawbar Mount(no-drill)

• fits 50mm/2″drawbar or rear bumber on caravan

BBQARM Kit for Caravan Or Trailer 850mm Arm

• Laser-cut and powder-coated galvanised steel tube 850mm
• BQARM Kits include mount, arm & tray
• Overall kit weighs approx. 7.5kg.
• When correctly fitted is rated to carry up to 30kg

WHAT IS BBQARM?

• BBQARM swing-away table for camp bbqs
• Take your bbq wherever you go
• Solid and simple design with few moving parts
• BBQARM is built to withstand Australia’s harsh climate extremes
• With van space at a premium and weight and load a real issue for caravaners, BBQARM is light weight and portable.

Installation Instructions

BBQARM with Universal Drawbar Mount for Caravan

• Loosen off the two bolts on the Universal Drawbar Mount
• Place the mount into position on your drawbar.
• Using a shifting spanner, tighten the bolts to secure it in place
• Unwind the handle to loosen the clamp at the front
• Place the arm into position and tighten handle
• Place the tray into the square tube end of arm
• Tighten the locking screw/wing-nut to reduce any movement

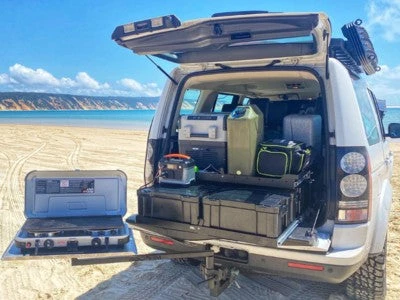

BBQARM with Vehicle Tow-Hitch mount for tow-vehicle

• Slide mount into your tow-hitch receiver.
• Slide in you locking pin
• Unwind the handle to loosen the clamp at the front
• Place the arm into position and tighten handle
• Place the tray into the square tube end of arm
• Tighten the locking screw/wing-nut to reduce any movement

BBQARM MATE

• Designed to connect to your existing BBQARM
• Undo the bolt at the front of the clamp
• Wrap the clamp around the lower shaft/round tube section of your existing BBQARM arm and tighten bolt all the way. Tighten with shifter but allow your arm to swivel (so not too tight).
• Place the tray on to the end of your arm.
• Tighten the wing-bolt to secure your tray
• If you do not have an existing BBQARM you can attach this product to the shaft of your jockey wheel
